【4K 超高畫質輸出：細節無所遁形】

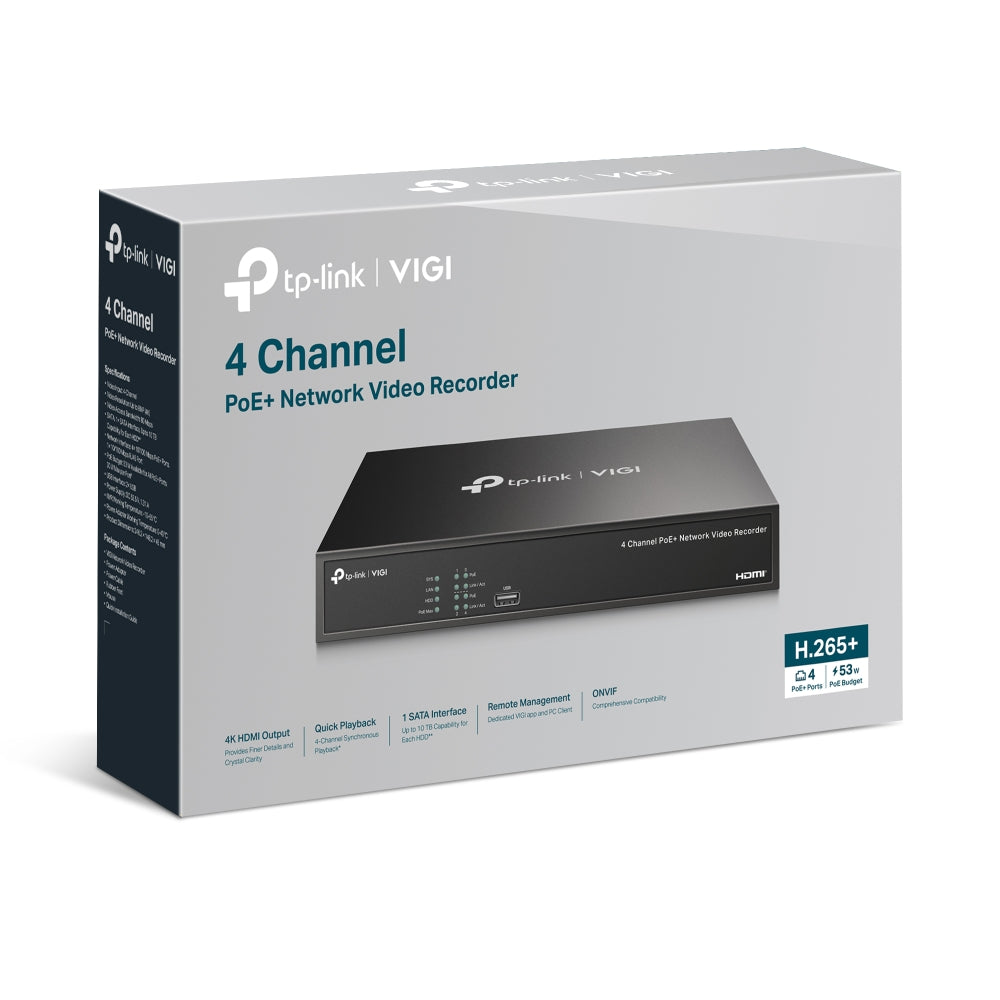

VIGI NVR1004H-4P 支援 4 頻道即時預覽，並配備 4K HDMI 影像輸出，確保您在監視器上能看清每一個細微細節。具備強大的解碼能力，最高可支援 2 路 8MP 或 4 路 4MP 影像同時播放，讓回放畫面精確且順暢。
【即插即用：內建 4 埠 PoE+ 專業供電】
簡化您的安裝流程！主機內建 4 個 10/100 Mbps PoE+ 連接埠，具備 53W 總供電預算。僅需透過一條網線即可同時傳輸電力與數據，無需額外配置電源線或變壓器，是 DIY 安裝與專業工程的理想選擇。
【高效儲存與壓縮技術】
搭載 1 個 SATA 介面，最高可支援 10TB 硬碟容量，為您的錄影數據提供穩固的後盾。採用 H.265+ 視訊壓縮技術，在不損失畫質的情況下，大幅節省儲存空間並減輕網路頻寬壓力。
【多介面輸出與遠端即時監控】
支援 HDMI 與 VGA 同步輸出，靈活適配各類螢幕。透過 VIGI App 或專用管理軟體，您不論身在何處，都能隨時透過手機或平板進行遠端監控、即時查看畫面，確保安全防護不間斷。
[4K Ultra-HD Output: Capture Every Detail]
The VIGI NVR1004H-4P supports 4-channel live view and features high-performance 4K HDMI video output. With a decoding capability of up to 2-ch @ 8MP or 4-ch @ 4MP, you can ensure that your visual evidence is sharp, clear, and professional.
[Plug & Play: Integrated 4-Port PoE+]
Simplify your security network. This NVR comes with 4 built-in 10/100 Mbps PoE+ ports with a 53W total power budget. A single Ethernet cable handles both data and power for each connected camera, eliminating the need for extra power adapters and messy wiring.
[Efficient Storage & H.265+ Compression]
Equipped with a SATA interface supporting up to 10TB, providing ample room for your video archives. VIGI’s H.265+ technology compresses video to save significant disk space and reduce network load while maintaining crystal-clear image quality.
[Dual Output & Remote Accessibility]
Featuring simultaneous HDMI and VGA outputs for flexible display setups. Stay connected 24/7 with the VIGI app or Security Manager. Access live feeds, playback recordings, and receive instant alerts on your device from anywhere in the world.
| 類別 (Category) | 繁體中文 (Traditional Chinese) | 英文 (English) |
| 品牌 (Brand) | TP-Link / VIGI | TP-Link / VIGI |
| 頻道 (Channel) | 4 頻道 / 4路監控 | 4-Channel / 4-Ch NVR |
| 技術 (Tech) | PoE+ 供電 / H.265+ | PoE+ Powered / H.265+ |
| 解析度 (Res) | 4K 輸出 / 8MP 支援 | 4K HDMI / 8MP Support |
| 儲存 (Storage) | 10TB 支援 / SATA | 10TB Support / SATA |
| Video and Audio | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel† |
| Capability | • 25fps: 2-ch @ 8MP, 4-ch @ 4MP • 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| Record Management | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T, CGI |
| External Interface | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB Capacity for Each HDD* |
| PoE | |
|---|---|
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| Alarm | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera. |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera. |
| GENERAL | |
|---|---|
| Storage Temperature | -40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | • VIGI Network Video Recorder • Power Adapter • HDD Screws • Rubber Feet • Mouse • Quick Installation Guide |
| Working Temperature | • NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 9.7 × 5.8 × 1.8 in (246.2 × 148.2 × 45 mm) |
| Power Supply | 53.5V DC/1.31A |
| Max. Power Consumption | • 4.25 W (Without Disk) • 13.10 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
